Models LP1403 and LP1402
30-88 MHz and 30-76 MHz Log Periodic Antenna Systems
| LP1402 | LP1403 | |
| Frequency Range | 30.0-76.0 MHz | 30.0-88.0 MHz |
| Power Rating | 65W Avg./130W PEP | 75W Avg./150W PEP |
| Polarization | Horizontal or Vertical | Horizontal or Vertical |
| Gain | 4.5 dBi | 4.5 dBi |
| Front-to-Back Ratio | 4-10 dB | 4-10 dB |
| VSWR, Nominal | 2:1 | 2:1 |
| Input Impedance | 50 ohms | 50 ohms |
| Antenna Input Connector | BNC Female | BNC Female |
Details

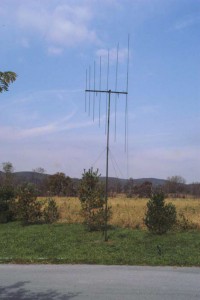

The tactical VHF broadband log periodic antennas provide many benefits to units on the move. These systems can be erected by two people in under 10 minutes. Broadband performance, low VSWR and high gain make the LP1403 the preferred choice for SINCGARS and frequency hopping radio systems. Top sections of mast are dielectric for optimum operation in vertical polarization. Each system comes complete in a canvas carrying bag ready for quick deployment of reliable communications.
Product Features
- Broadband Performance- compatible with SINCGARS, fixed, and frequency hopping radios
- Low Back Lobes- minimized signal in undesired direction
- Fast Erection- 2 people, 10 minutes
- Captivated Elements- no tools needed for assembly
- Adjustable Polarization and Azimuth- changes made from ground level while erected
- High Forward Gain- long paths with high margins
