Model V4213

30-88 MHz Portable Discone Antenna System

LP1402
Frequency Range 30.0-88.0 MHz
Power Rating 200/100 W
Polarization Vertical
VSWR, Nominal 2.5:1
Input Impendance 50 ohms
Antenna Input Connector Type N
Coaxial Cable RG-58 c/u

Details

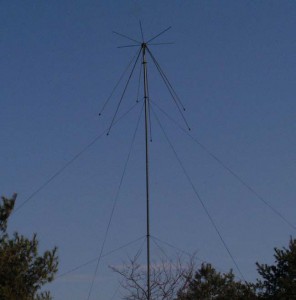

Model-V4213-web-picModel V-4213 offers a design concept featuring a portable, man-packed, omni-directional discone base station antenna for military broad-band VHF communications in the field. The emphasis on human engineering makes this antenna system easily and quickly erectable by two persons in less than 10 minutes.

The V-4213 includes a mast system constructed of 3-foot (91.4 cm) aluminum tube lengths which assemble to a height of 30 feet (9.1 m) above ground for optimum electrical antenna performance.
High reliability factors and mechanical ruggedness have been designed into these light-weight, compact systems, making them ideal for tactical military applications.

The V-4213 provides continuous coverage across the entire 30-88 MHz frequency range without need for electromechanical adjustments.

The V 4213 comes in two equipment levels. The 4213AD contains a complete system including mast, guy wires, tie downs, carrying case and coax. Just add your radio and go.  The 4213AC contains just the antenna for applications where existing infrastructure is in place or available.
